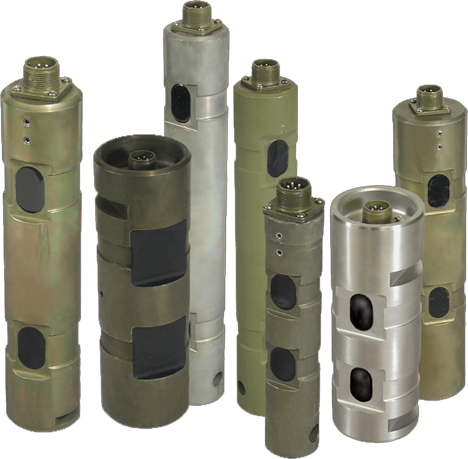

SHEAR PINS
The Vulcan Shear Pin Load Cells can be used in a wide variety of on-board weighing and general industry applications. On-board weighing applications include using the shear pins in the rear hinge assembly of dump trucks and roll-offs.
FEATURES:
- Designed for easy installation and low maintenance
- Flexible - multiple shear pin options for different applications
- Optional hinge assemblies suitable for new installations or retrofits
- Hinge assemblies feature composite bushings for maximum durability, accuracy, and load life
- Accurate and reliable in harsh environments
- Made from high strength, heat treated alloy steel
- Reliable, double-sealed, military style connectors
- Excellent for both on-road and off-road applications
SPECIFICATIONS:
- Dimensions: Application dependent. Please refer to appropriate application note or refer to factory
- Capacity: Application dependent. Please refer to appropriate application note or refer to factory
- Material: Standard material is high strength, heat treated, alloy steel. Stainless steel optional for custom applications
- Connectors: Military grade with dual environmental seals
- Accuracy: System accuracy typically within 1% of GVW
shear pins pec.pdf
(1.62 MB)
